Connecting to a Web Service using Flash - Page 2
by kirupa  |  7 September 2010

  Have questions? Discuss this Flash / ActionScript tutorial with others on the forums.

In the previous page, you received a brief intro to what web services are. More importantly, you told Flash to look in the Flash Builder libraries folder for any classes that may be referenced inside them. In this page, we'll build your application and look at how communication with a web service works.

Living La Vida MainDocument.as
With Flash now correctly setup to deal with your project, let's go ahead and focus our eyes on the code. All of our code lives inside MainDocument.as, so ensure that document is open and currently displayed.

Looking at the Existing Code
As you can see, some code is already provided for you inside MainDocument.as:

package
{
import flash.display.MovieClip;
import flash.events.MouseEvent;

public class MainDocument extends MovieClip
{
public function MainDocument()
{
// setting up an event with an event handler
startButton.addEventListener(MouseEvent.CLICK, SetupWebService);
}

function SetupWebService(event:MouseEvent):void
{

}
}
}

Don't worry, the code that exists here is pretty boilerplate. These few lines of code just say, "Call the SetupWebService method when you click on the button."

Adding the Code
Now that you know what you currently have on your plate called MainDocument.as, let's go ahead and pile some more code on.

Replace all of your code with the code you see below:

package
{

import flash.display.MovieClip;
import flash.events.MouseEvent;
import mx.rpc.soap.*;
import mx.rpc.events.*;
import mx.rpc.AbstractOperation;

public class MainDocument extends MovieClip
{

private var movieWebService:WebService;
private var serviceOperation:AbstractOperation;

public function MainDocument()
{

// setting up an event with an event handler
startButton.addEventListener(MouseEvent.CLICK, SetupWebService);

}

function SetupWebService(event:MouseEvent):void
{
var url:String = "http://www.kirupafx.com/WebService/TopMovies.asmx?WSDL";

movieWebService = new WebService();
movieWebService.loadWSDL(url);

movieWebService.addEventListener(LoadEvent.LOAD, BuildServiceRequest);

}

function BuildServiceRequest(evt:LoadEvent)
{

serviceOperation = movieWebService.getOperation("GetMovieAtNumber");

serviceOperation.addEventListener(FaultEvent.FAULT, DisplayError);
serviceOperation.addEventListener(ResultEvent.RESULT, DisplayResult);

serviceOperation.send([GenerateRandomNumber(0,9)]);

}

function DisplayError(evt:FaultEvent)
{

trace("error");

}

function DisplayResult(evt:ResultEvent)
{

var movieName:String = evt.result as String;
movieText.text = movieName;

}

function GenerateRandomNumber(min:int, max:int):int
{

return Math.floor(Math.random()*(1+max-min))+min;

}

}

}

The code that was there earlier is still there. I just figured copying and pasting the entire code would be easier than having you selectively paste the code that is different.

Once you have all of this code pasted, you should have everything necessary for making your application connect to a web service and return some data. Save this file and test your application by going to Control | Test Movie | Test or by pressing Ctrl + Enter.

Understanding Web Service Communication
Now that you have a working application that connects to a web service, let's understand how it all works. Before we get to the code, though, it is helpful to have an overview of what exactly happens when your application communicates with a web service.

The following six steps summarize the life of your data as it is communicated to your web service:

  1. In order to communicate with a web service, you need to construct a request that defines what you want the web service to do to you.

    The first step in that process is to specify the URL of the web service you want to connect to. In our example, the web service URL looks as follows: http://www.kirupafx.com/WebService/TopMovies.asmx

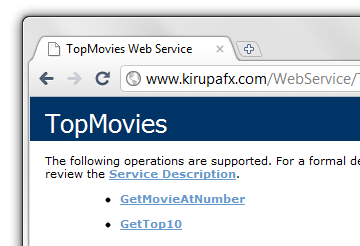

  2. Once you specify the web service URL, you need to figure out what you want to ask the web service. The operations a web service supports is generally documented by the web service itself and can be accessed by pasting the web service URL into the browser:

[ the list of operations this web service contains ]

  1. After you figure out which operation you want to use, the next step is to pass in the data that completes the operation.

    Note - This step is optional, for some web service operations do not require any data outside of simply calling the method associated with the operation.
  2. I can hear drumrolls! The next step is to actually make the web service request. All of this time you were merely constructing the formal request. You need to package it up and send it over to the web service.
  3. Once your request has been sent, the last step is to wait for a response and handle the response appropriately.

    The response may result in you getting the data that you want, or the response may give you some intermediate information that you will need to make the web service request again. What you get back is determined by the web service itself, and many web services are quite unique in how they operate.

Ok, now that you have a brief overview how data is communicated to and from a web service, let's look at how these six steps are mapped in the code.

Onwards to the next page!
